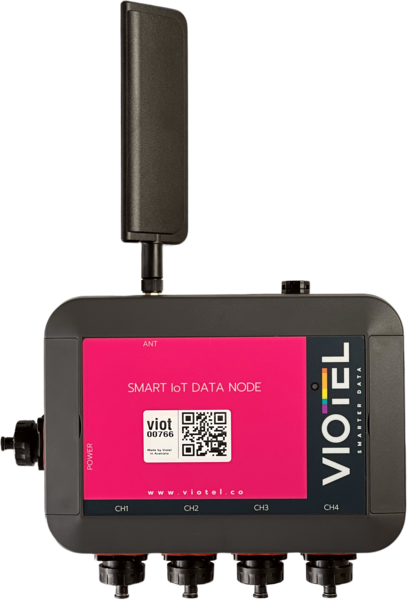

Viotel Smart IoT Node

The Viotel SMART Iot Data Node is based on an ultra low power microprocessor. The node is self contained with internal battery (solar panel optional), GPS and cellular (Cat-M1) modem with pre-installed SIM card.

The Viotel SMART node is shipped with 4x adaptors for your sensors or alternative you can purchase the plug to junction box adapter. Simply mount the sensor in the desired location, connect to the  sensor(s) and power on for reliable, continuous, real time monitoring.

Examples of typical instruments to use with this device include inclinometers, digital geotechnical and structural instruments, pressure transducers, crack meters, strain gauges, draw wires, laser distance meters, load cells and more.

Manufactured in Australia.

Features and Benefits

  • 4 Channel inputs.

  • 1x MODBUS/RS485, 2x  4-20mA, 1x Strain Gauge

  • Huge 8+year battery life with daily uploads.

  • Wireless Operation.

  • CAT-M1 integrated communications and global sim.

  • Alarm capability when measurement exceeds pre-set limits.

  • Compatible with a wide range of sensors.

  • Internal temperature Sensor.

  • Internal GPS for positioning and timing.

Specifications

Smart Node Specifications:

Number of channels4
Interface1x MODBUS RS485, 2x 4-20mA & 1x Strain Gauge
Resolution24 bits over 4-20mA
Accuracy20 nA
Sampling RateFrom every 5 minutes to daily
Upload RateFrom every 5 minutes to daily (max 24 data samples per upload)
Dimensions150mm x 210mm x 55mm (WxLxD)
Weight0.7kg
Operating Temperature-35 to +75°C
Internal Battery Life

Hourly Reading, Daily Upload: >5.5 years

Daily Reading, Daily Upload: >8.5 years

Enclosure FeaturesASA plastic, UV stabilised, IP67
Antenna OptionsExternal Antenna. (Internal model available)
